SERVICES

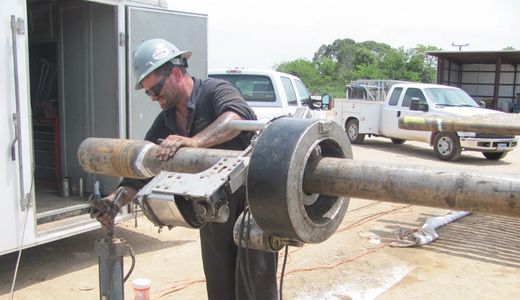

Drill Pipe Inspection
Pro-Tec Inspection has the latest state of the art EMI Equipment for all of your drill pipe needs. All inspectors are ASNT Level II Certified and adhere to the DS-1 Manual for inspection criteria. EMI (Electromagnetic inspection) is used to inspect the full length of the tubes for pitting, cracks, slip cuts, etc….. The EMI unit also has a wall loss monitoring system that scans the full length of the tube .

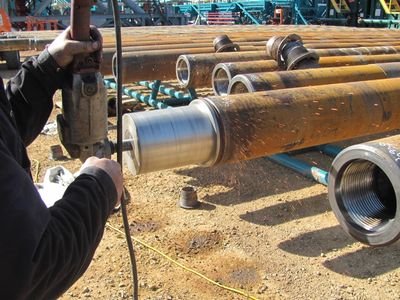

Drill Collar & BHA Inspection
Pro-Tec Inspection employs qualified and certified personnel to perform wet magnetic particle inspection on drill collars and rotary sub thread connections as well as other drilling components. Parts are introduced to a longitudinal field so they can be inspected for transverse flaws (cracks) in the thread connections. All thread connection inspections are performed with a black light while looking for cracks as well as lead gauges and API thread profile gauges to determine thread wear.

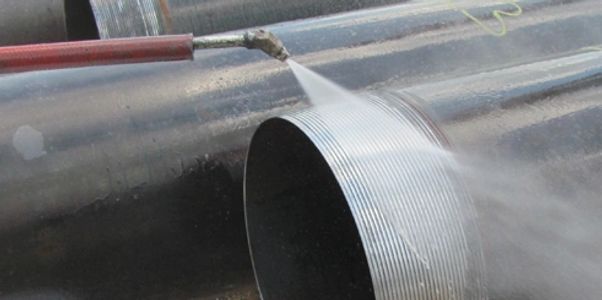

Casing Clean, Drift & Tally
Pro-Tec has clean and drift crews that rack pipe, tally, drift and clean casing. All casing is drifted with mandrels conforming to API specifications that are passed through the full length of each tube to assure compliance with API internal diameter specifications. If a mashed or dented joint is found that prevents drift, that joint is removed from the string and marked accordingly.

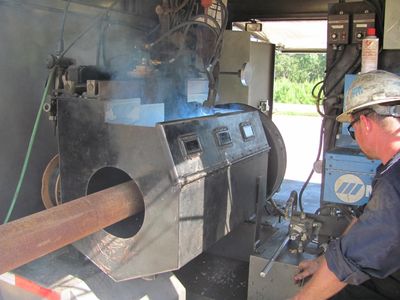

Hardbanding
Hardbanding is a service that protects drill pipe and drill collars from premature wear. Pro-Tec can apply all products including but not limited to, Tungsten Carbide, Titanium, Armacore, Duraband, and Tuffband.
